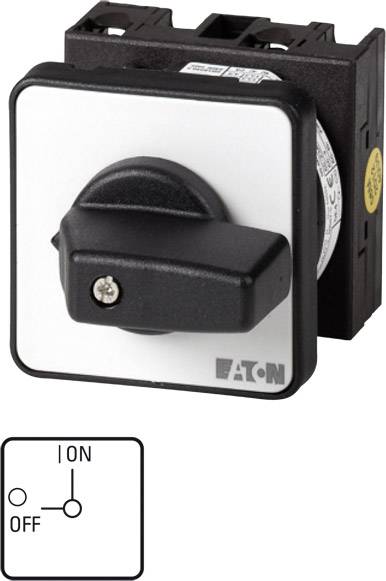

Eaton TM-1-8291/E-Odmično stikalo, 10A, 1x90, sivo, črno, 3kW, 1 kos 72504

Blagovna znamka Eaton

(0 ocen)

41,99 EUR

Koda izdelka: 703700
EAN: 4015080725046
Predvidena dobava:01.10.2026 - 02.10.2026

Varnost izdelkov (GPSR)

Proizvajalčeva koda: 72504

EAN koda: 4015080725046

Registrirana blagovna znamka: Eaton

Ime proizvajalca: Eaton Electric GmbH

Naslov proizvajalca: Hein-Moeller-Str. 7-11

Poštna številka proizvajalca: 53115

Kraj proizvajalca: Bonn

Država proizvajalca: Germany

Telefon proizvajalca: +496951709895

Elektronski kontakt proizvajalca: https://www.eaton.com

Kontakt odgovorne osebe za varnost: [email protected]

Država odgovorne osebe za varnost: Nemčija

Dokumenti

Tehnični podatki 703700 Eaton TM-1-8291/E-Odmično stikalo, 10A, 1x90, sivo, črno, 3kW, 1 kos 72504

Informacije 703700 Eaton TM-1-8291/E-Odmično stikalo, 10A, 1x90, sivo, črno, 3kW, 1 kos 72504

Navodila za uporabo in varnost 703700 Eaton TM-1-8291/E-Odmično stikalo, 10A, 1x90, sivo, črno, 3kW, 1 kos 72504

Tehnični podatki

Vrsta izdelka	odmično stikalo
Barva ohišja/gumba	siva črna
Funkcije	zaskočno
Aktivacija - vrsta	zatič
Preklopni kot	1 x 90 °
Izvedba	Namestitev vklopnega izklopa
Način montaže	vgradnja
Motiv za tisk	0/1
Število pinov	2
Priključek	vijačni
Velikost navoja	M2.5
Preklopni tok maks.	10 A
Moč	3 kW
Min. temperatura	-25 °C
Maks. temperatura	+50 °C
Dolžina	30 mm
Širina	30 mm
Vrsta zaščite	IP65
Vsebina	1 kos
Vrsta	TM-1-8291/E
Mere	(D x Š) 30 mm x 30 mm
Width	30
Height	30 mm
Depth	62 mm
Rated operation power at AC-3, 400 V	0 kW
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Rated permanent current Iu	10 A
Number of poles	2
Rated operating voltage	500-500 V
Conditioned rated short-circuit current Iq	0 kA
Degree of protection (IP), front side	IP65
Number of auxiliary contacts as change-over contact	0
Number of switches	1
Interlockable	FALSE
Motor drive integrated	FALSE
Type of electrical connection of main circuit	Screw connection
Version as emergency stop installation	FALSE
Type of control element	Short rotary handle
Version as main switch	FALSE
Version as safety switch	FALSE
Version as maintenance-/service switch	FALSE
Rated operation power at AC-23, 400 V	3 kW
Rated short-time withstand current lcw	0 kA
Colour control element	Black
Suitable for floor mounting	FALSE
Suitable for front mounting 4-hole	TRUE
Suitable for front mounting centre	FALSE
Suitable for distribution board installation	FALSE
Suitable for intermediate mounting	FALSE
Max. rated operation voltage Ue AC	500 V
Motor drive optional	FALSE
Voltage release optional	FALSE
Device construction	Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V	0 A
Switching power at 400 V	0 kW
Version as reversing switch	FALSE
Degree of protection (NEMA)	12
With pre-assembled cabling	FALSE
UKCA	da
