Opis

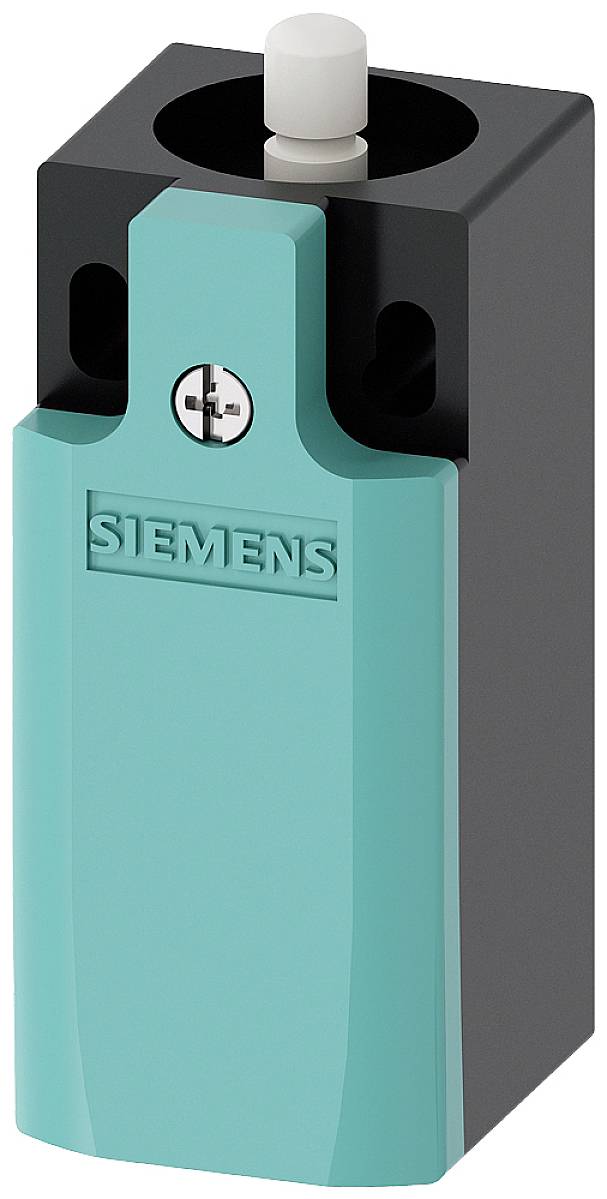

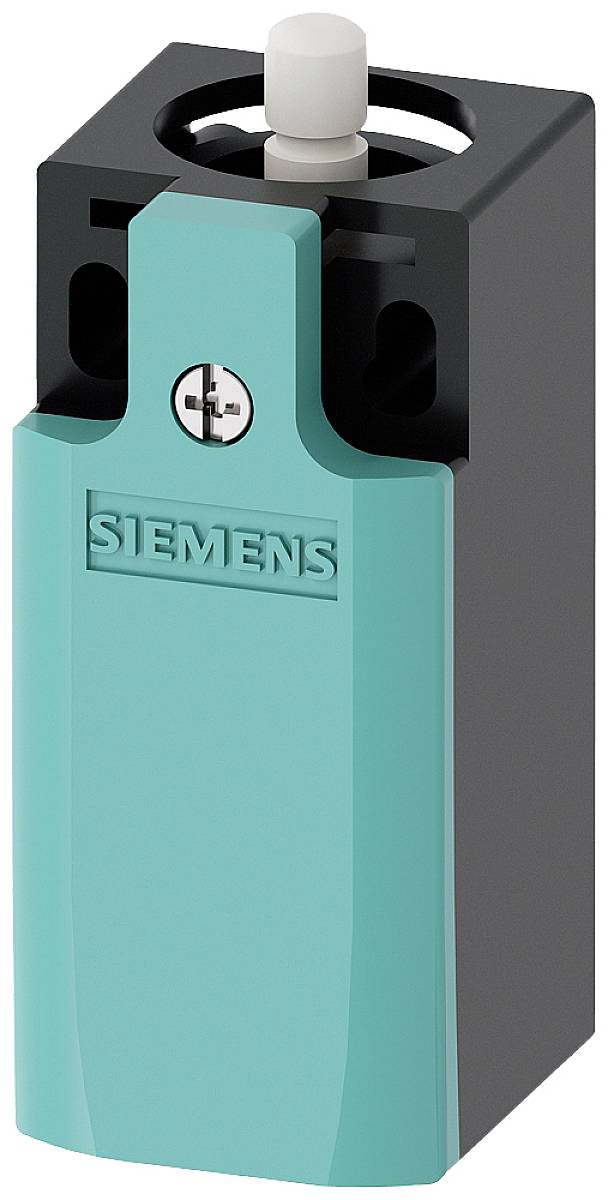

position switch plastic enclosure according to EN 50047, 31 mm device connection 1 x (M20 x 1.5) 1 NO/1 NC, quick action contacts (replaceable), rounded plunger form B Mechanical position switches SIRIUS 3SE5 for position sensing of machine parts and position monitoring of protection equipment.
The modular design of the 3SE5 position switches permits a host of variants with a small number of bearing types. The wide variety of plug-in connectors and rollers meets almost all everyday requirements in industry. LEDs indicate the current state of the device. Thanks to quick-connect technology, the time required for connection can be considerably reduced. Operating points and mounting in accordance with EN 50047 and EN 50041. The devices have worldwide approval (IEC, UL). With the corresponding switch configuration, the highest safety requirements specified by PL e or SIL 3 can be met. The integrated ASIsafe electronics requires a low current input.
Various enclosure sizes, with different contacts, are available in plastic or metal, or compact design. Some versions are optionally available with an LED status display and M12 plug. The 3SF1 series with direct connection to the AS-Interface bus system completes the portfolio.

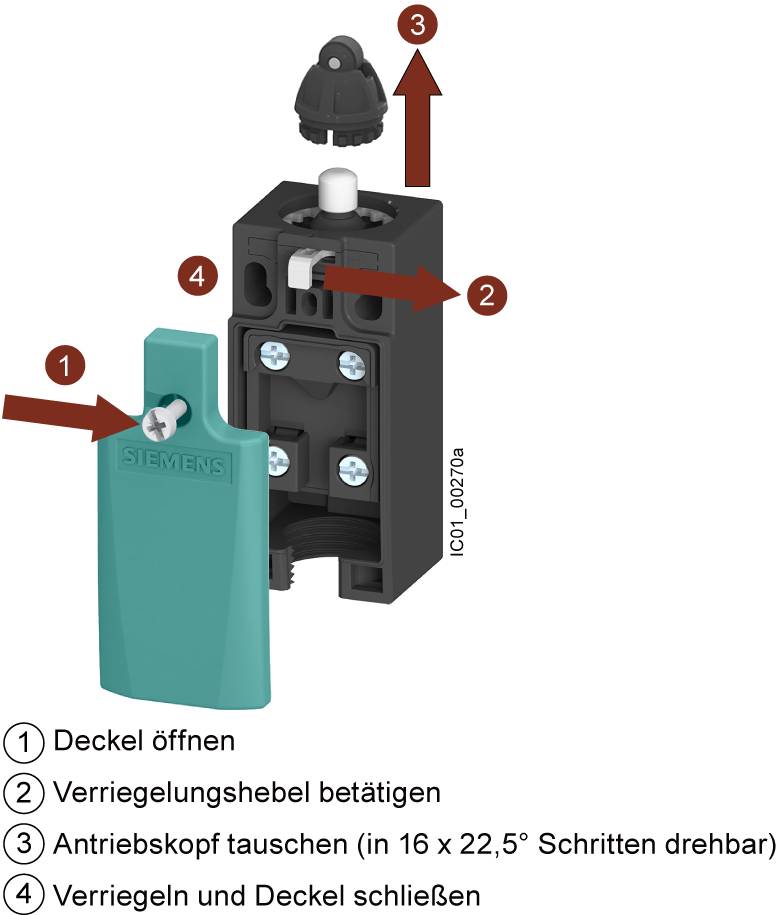

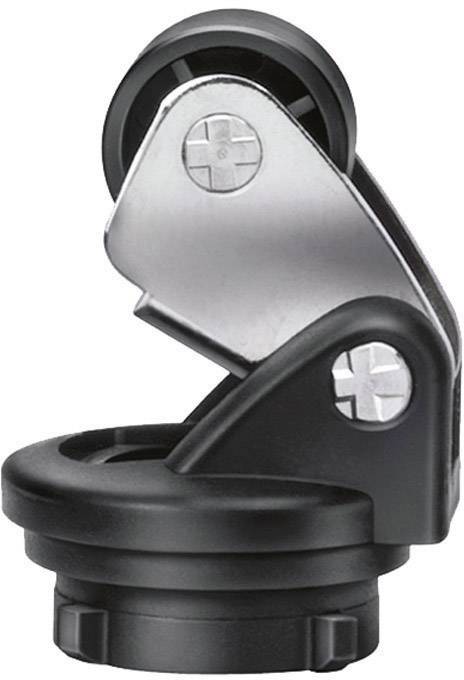

Depending on the design, actuator heads and plug-in connectors, as well as other mounting/connection accessories, are available.
Safety is a SIRIUS business.
Dobava vključuje
Končno stikalo 240 V/AC 3 A bat, tipkalno Siemens SIRIUS 3SE5232-0CC05 IP67 1 kos
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 3SE52320CC05
EAN koda: 4011209694088
Registrirana blagovna znamka: Siemens
Ime proizvajalca: Siemens AG
Naslov proizvajalca: Siemenspromenade 2
Poštna številka proizvajalca: 91058
Kraj proizvajalca: Erlangen
Država proizvajalca: Germany
Telefon proizvajalca: +498938035491
Elektronski kontakt proizvajalca: https://www.siemens.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnični podatki
| Vrsta izdelka |
ohišje za položajno stikalo |
|---|---|
| Priključek |
vijačni |
| Aktivacija - vrsta |
dročnik |
| Preklopna napetost |
240 V/AC |
| Preklopni tok maks. |
3 A |
| Kontakt |
1 zapiralo |
| Odprtina kontakta |
sprožilni kontakt |
| Funkcije |
tipkalno |
| Potrditvena moč |
20 N |
| Min. temperatura |
-25 °C |
| Maks. temperatura |
+85 °C |
| Vrsta zaščite |
IP65 |
| Velikost navoja |
M20 |
| Mehanska življenjska doba |
15000000 |
| Električna življenjska doba |
100000 |
| Material |
plastika |
| Širina |
31 mm |
| Vrsta |
3SE5232-0CC05 |
| Vsebina |
1 kos |
| Mere |

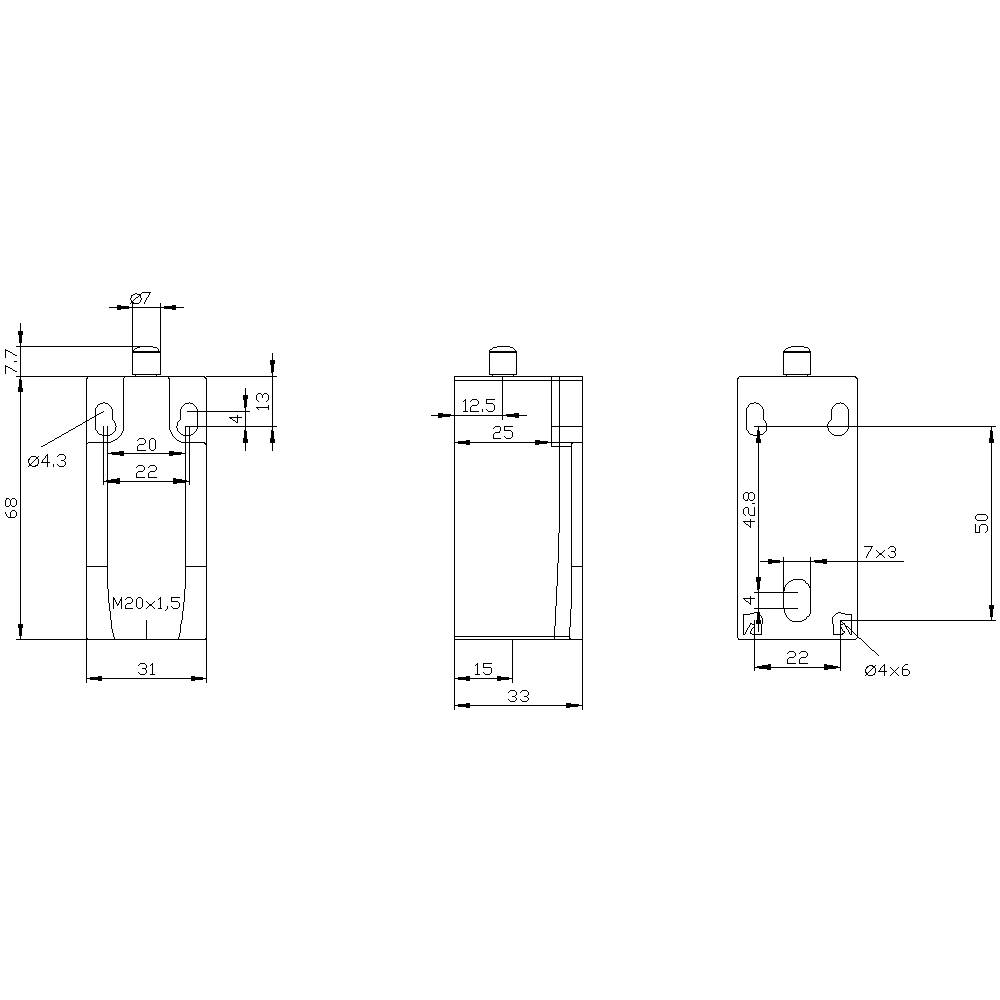

(Š x V x G) 31 x 68 x 33 mm |
| Skladnost z RoHS |
Ja |
| Višina |
68 mm |
| Globina |
33 mm |
| Izvedba |
1 x delovni kontakt, 1 x mirovni kontakt |
| Preklopni kontakt |
sprožilni kontakt |
| Vrsta |
3SE5232-0CC05 |
| Ohišje |
ohišje iz umetne mase |
| Switching function |
Quick-break switch |
| Housing material |
Plastic |
| Suitable for safety functions |
TRUE |
| Coating housing |
Other |
| With status indication |
FALSE |
| Type of interface for safety communication |
None |
| Explosion safety category for gas |
None |
| Explosion safety category for dust |
None |
| Construction type housing |
Cuboid |
| Degree of protection (IP) |
IP65 |
| Forced opening |
TRUE |
| Number of safety auxiliary contacts |
1 |
| Type of control element |
Plunger |
| Type of interface |
None |
| Output electronic |
FALSE |
| Rated operation current Ie at AC-15, 24 V |
6 A |
| Rated operation current Ie at DC-13, 125 V |
0.55 A |
| Rated operation current Ie at DC-13, 24 V |
3 A |
| Width sensor |
31 mm |
| Height of sensor |
33 mm |
| Length of sensor |
75.7 mm |
| Switching function latching |
FALSE |
| Ambient temperature during operating |
-25-85 °C |
| Number of contacts as normally closed contact |
1 |
| Number of contacts as normally open contact |
1 |
| Number of contacts as change-over contact |
0 |
| Alignment of the control element |
Roller cam straight |
| Degree of protection (NEMA) |
12 |
| UKCA |
da |
