Opis

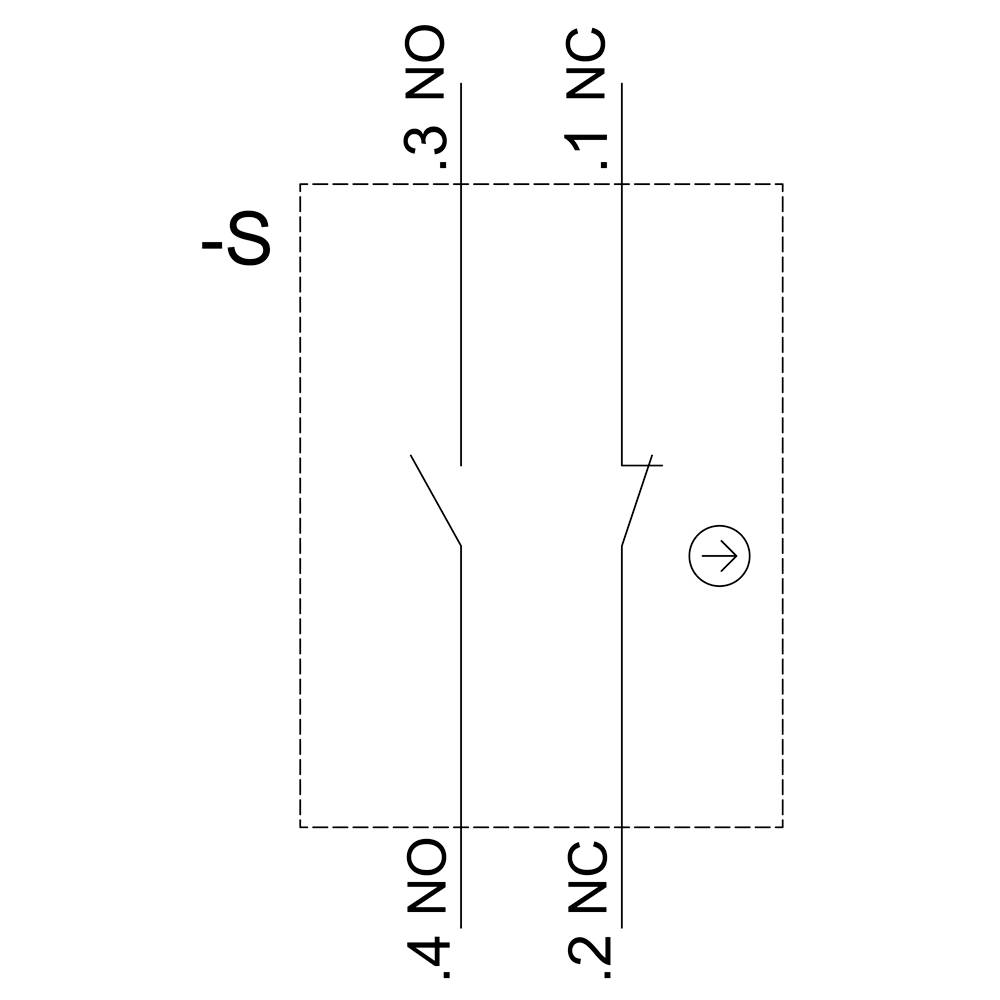

Contact module with 2 contact elements, 1 NO+1 NC, screw terminal, for front plate mounting Contact module SIRIUS ACT for switching power circuits.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Various switching functions, various types of connection and installation, 1- and 2-pole.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 3SU14001AA101FA0
EAN koda: 4011209950979
Registrirana blagovna znamka: Siemens
Ime proizvajalca: Siemens AG
Naslov proizvajalca: Siemenspromenade 2
Poštna številka proizvajalca: 91058
Kraj proizvajalca: Erlangen
Država proizvajalca: Germany
Telefon proizvajalca: +498938035491
Elektronski kontakt proizvajalca: https://www.siemens.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnični podatki
| Vrsta embalaže |
Piece |
|---|---|
| Vrsta izdelka |
kontaktni modul |
| Vrsta |
3SU1400-1AA10-1FA0 |
| Število polov |
2-polni |
| Material kontakta |
srebrova zlitina |
| Vrsta pomožnega kontakta |
1 zapiralo |
| Nazivna napetost |
500 V DC/AC |
| Preklopna napetost (maks.) |
500 V DC/AC |
| Stalni tok (maks.) |
10 A |
| Primerno za znamko |
Siemens |
| Primerno za serijo |
Siemens serija Sirius |
| Namestitev |
sprednja |
| Priključek |
vijačni |
| Električna življenjska doba |
10000000 |
| Mehanska življenjska doba |
10000000 |
| Min. temperatura |
-25 °C |
| Maks. temperatura |
+70 °C |

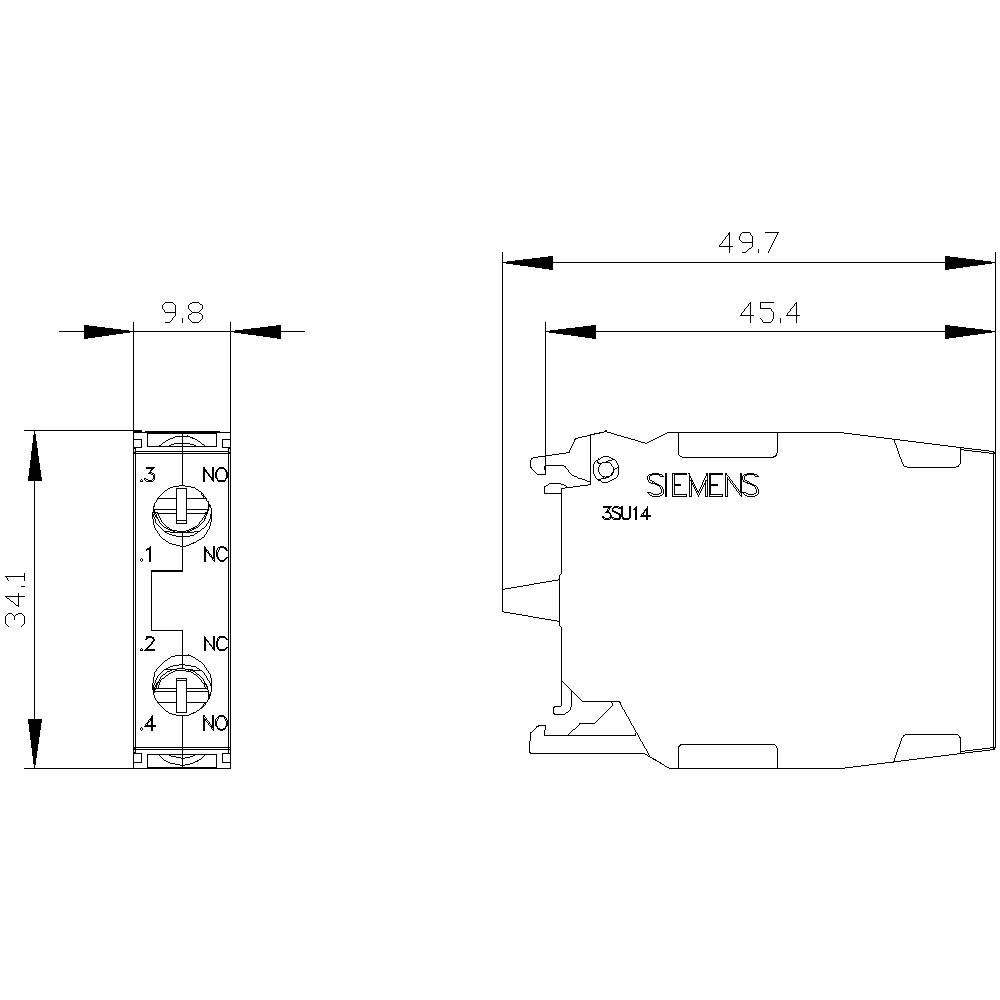

| Širina |
9.8 mm |
| Višina |
34 mm |
| Globina |
49.7 mm |
| Mere |
(Š x V x G) 9.8 x 34 x 49.7 mm |
| Vsebina |
1 kos |
| Skladnost z RoHS |
Ja |
| Barva |
večbarvna |
| Teža |
0.0180 kg |
| Mounting method |
Front fastening |
| Rated operation current Ie at AC-15, 230 V |
6 A |
| Type of electric connection |
Screw connection |
| Number of fault-signal switches |
0 |
| Number of contacts as normally closed contact |
1 |
| Number of contacts as normally open contact |
1 |
| Number of contacts as change-over contact |
0 |
| UKCA |
da |
