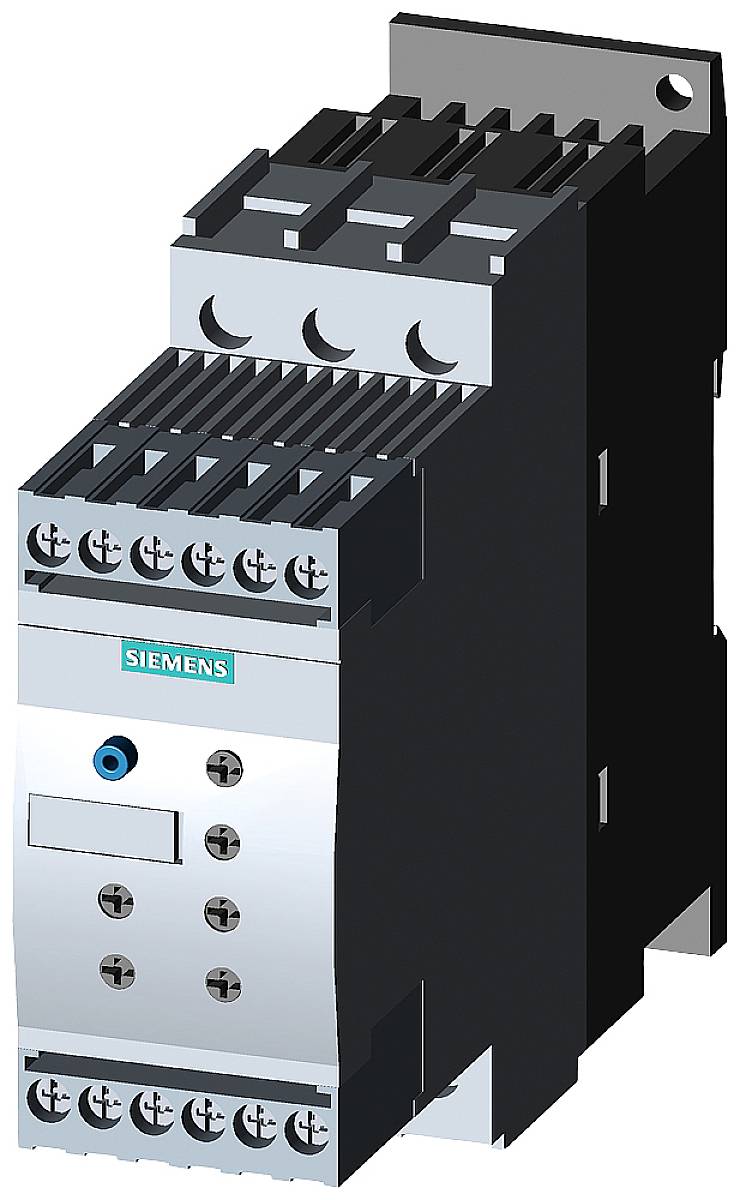

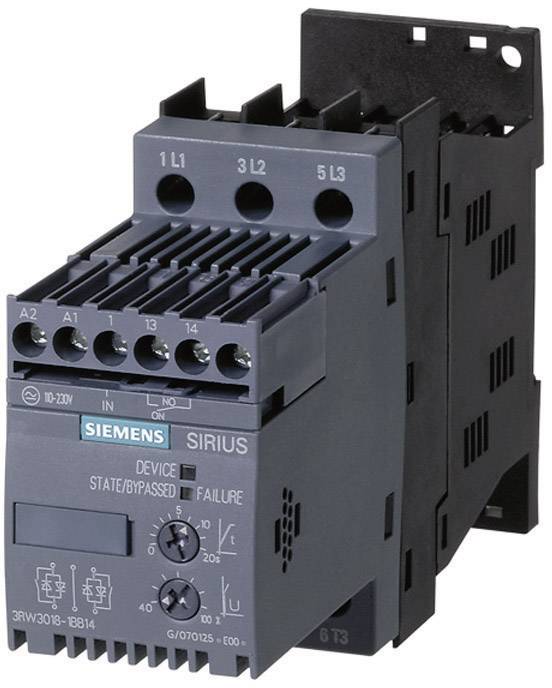

SIRIUS soft starter S00 6.5 A, 3 kW/400 V, 40 °C 200-480 V AC, 110-230 V AC/DC Screw terminals Soft starter SIRIUS 3RW30 for standard applications for the soft starting of three-phase asynchronous motors.
Soft starting, reduction of current peaks, prevention of supply voltage fluctuations during startup, reduction of load on the power supply network, reduction of mechanical load in the drive, considerable saving of space and wiring compared to star-delta (wye-delta) starters and frequency converters, maintenance-free switching and extremely easy handling. The integrated bypass allows a very compact construction and ensures low heat dissipation in the control cabinet. Worldwide approvals (e.g. IEC and UL/CSA).
The 3RW soft starters are available for supply systems up to 690 V in a wide performance range with different control supply voltages and all with both screw and spring-loaded terminals. For the 3RW30/40 there are additional versions with 24 V control supply voltage. Some of the 3RW40 up to size S3, and all 3RW44 units also offer thermistor motor protection.

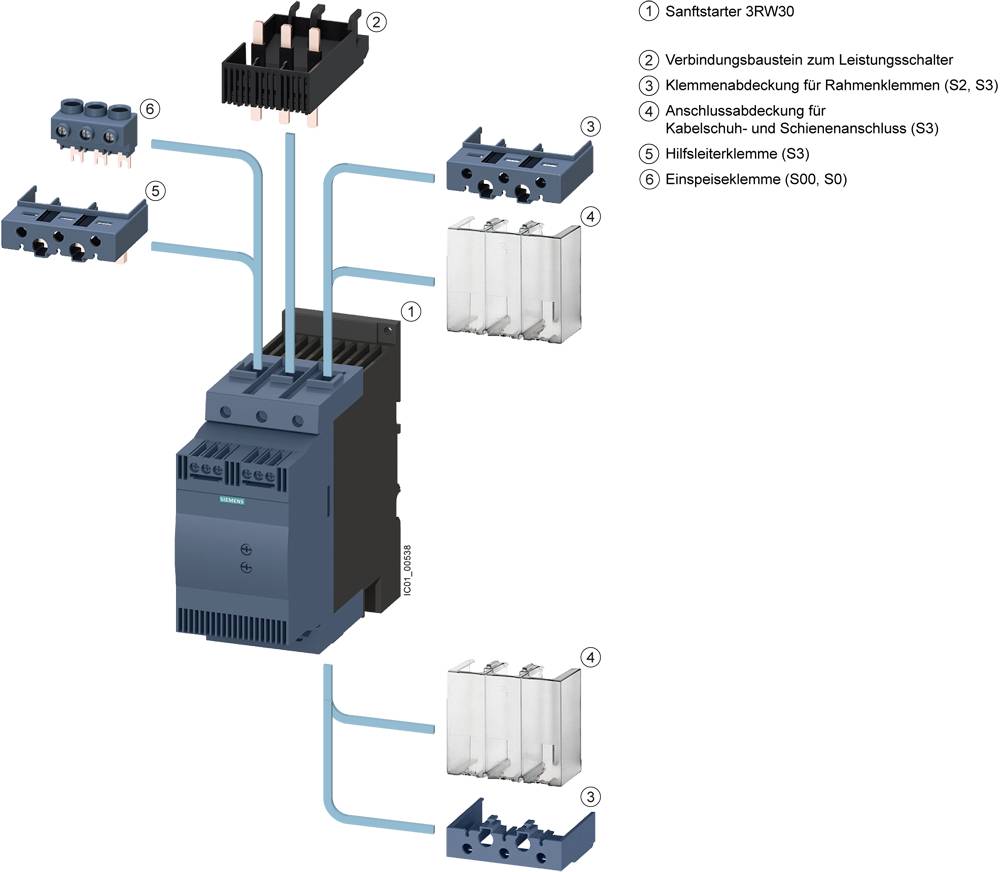

With the optional link module, the soft starters can be attached to the circuit breakers, even for the versions with spring-loaded terminals.
Simple, efficient and always up to date - SIRIUS modular system.

Dobava vključuje

Mehki zaganjalnik Siemens 3RW3014 moč motorja pri 400 V 3.0 kW moč motorja pri 230 V 1.5 kW 400 V/AC nazivni tok 6 A

Varnost izdelkov (GPSR)

Proizvajalčeva koda: 3RW30141BB14

EAN koda: 4011209719606

Registrirana blagovna znamka: Siemens

Ime proizvajalca: Siemens AG

Naslov proizvajalca: Siemenspromenade 2

Poštna številka proizvajalca: 91058

Kraj proizvajalca: Erlangen

Država proizvajalca: Germany

Telefon proizvajalca: +498938035491

Elektronski kontakt proizvajalca: https://www.siemens.com/

Kontakt odgovorne osebe za varnost: [email protected]

Država odgovorne osebe za varnost: Nemčija

Dokumenti

  Tehnični podatki 197798 Mehki zaganjalnik Siemens 3RW3014 moč motorja pri 400 V 3.0 kW moč motorja pri 230 V 1.5 kW 400 V/AC nazivni tok 6 A

  Navodila za uporabo in varnost 197798 Mehki zaganjalnik Siemens 3RW3014 moč motorja pri 400 V 3.0 kW moč motorja pri 230 V 1.5 kW 400 V/AC nazivni tok 6 A

  Navodila za uporabo in varnost 197798 Mehki zaganjalnik Siemens 3RW3014 moč motorja pri 400 V 3.0 kW moč motorja pri 230 V 1.5 kW 400 V/AC nazivni tok 6 A
