Opis
Solid-state contactor 1-phase 3RF2 AC 51 / 10.5 A / 40 °C 24-230 V / 24 V DC screw terminal solid-state contactor SIRIUS 3RF23 for switching resistive/inductive loads, e.g. of heaters or valves in a bottling plant.

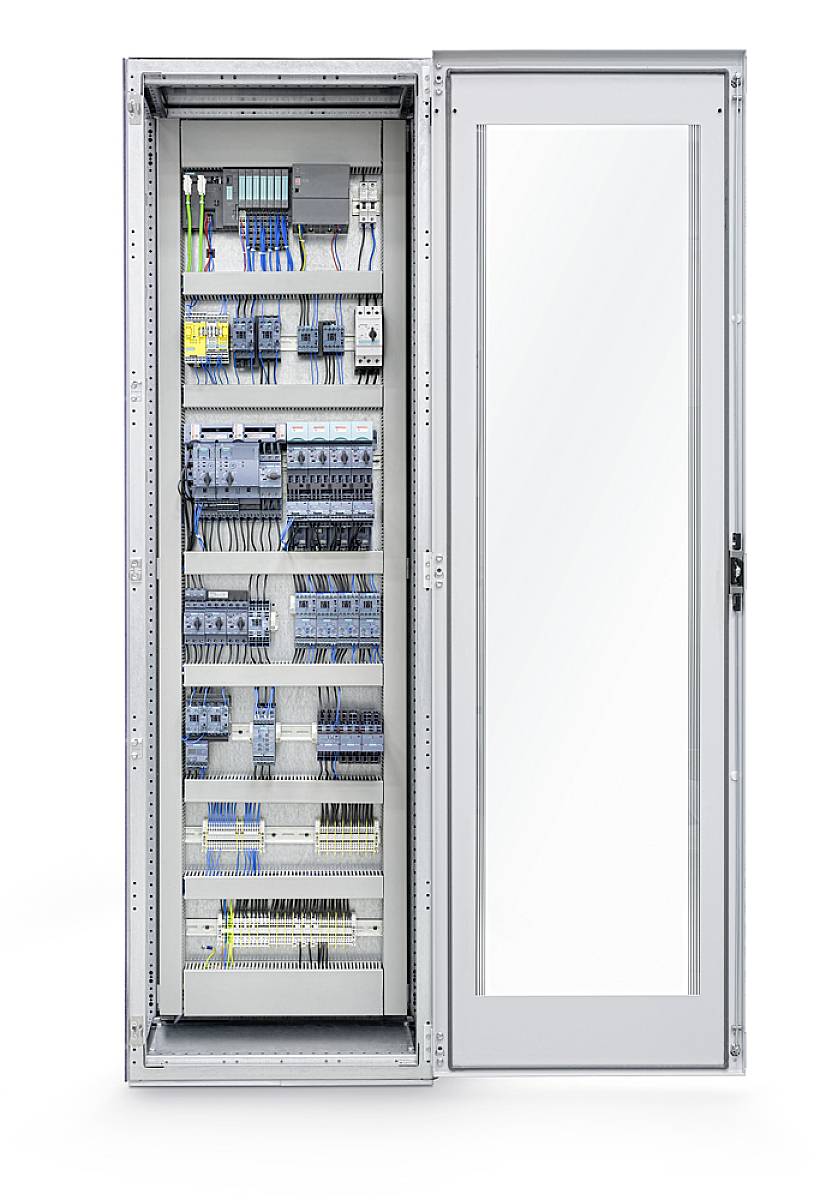

The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. As the heat sink is already integrated, they can be used directly in the control cabinet. The compact design saves space on the mounting rail. The solid-state contactors can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state contactors are available as single-phase or three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
Dobava vključuje
Polprevodniška zaščita 1 kos 3RF2310-1AA02 Siemens bremenski tok: 10.5 A preklopna napetost (maks.): 230 V/AC
Namigi
Upoštevajte, da je izdelek poseben naročilo in zato izključen iz donosa. Posebno naročilo, brez pravice do odstopa.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 3RF23101AA02
EAN koda: 4011209572164
Registrirana blagovna znamka: Siemens
Ime proizvajalca: Siemens AG
Naslov proizvajalca: Siemenspromenade 2
Poštna številka proizvajalca: 91058
Kraj proizvajalca: Erlangen
Država proizvajalca: Germany
Telefon proizvajalca: +498938035491
Elektronski kontakt proizvajalca: https://www.siemens.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnični podatki
| Vrsta izdelka |
polprevodniška zaščita |
|---|---|
| Vrsta |
3RF2310-1AA02 |
| Število polov |
1-polni |
| Vrsta preklopa |
brez napetostno preklapljanje |
| Kontakt |
1 zapiralo |
| Krmilna napetost (min). |
15 V/DC |
| Krmilna napetost (maks.) |
24 V/DC |
| Območje krmilne napetosti |
15 - 24 V/DC |
| Preklopna napetost (min.) |
24 V/AC |
| Preklopna napetost (maks.) |
230 V/AC |
| Bremenski tok |
10.5 A |
| Priključek |
vijačna sponka |
| Vrsta zaščite |
IP20 |
| Min. temperatura |
-25 °C |
| Maks. temperatura |
+60 °C |

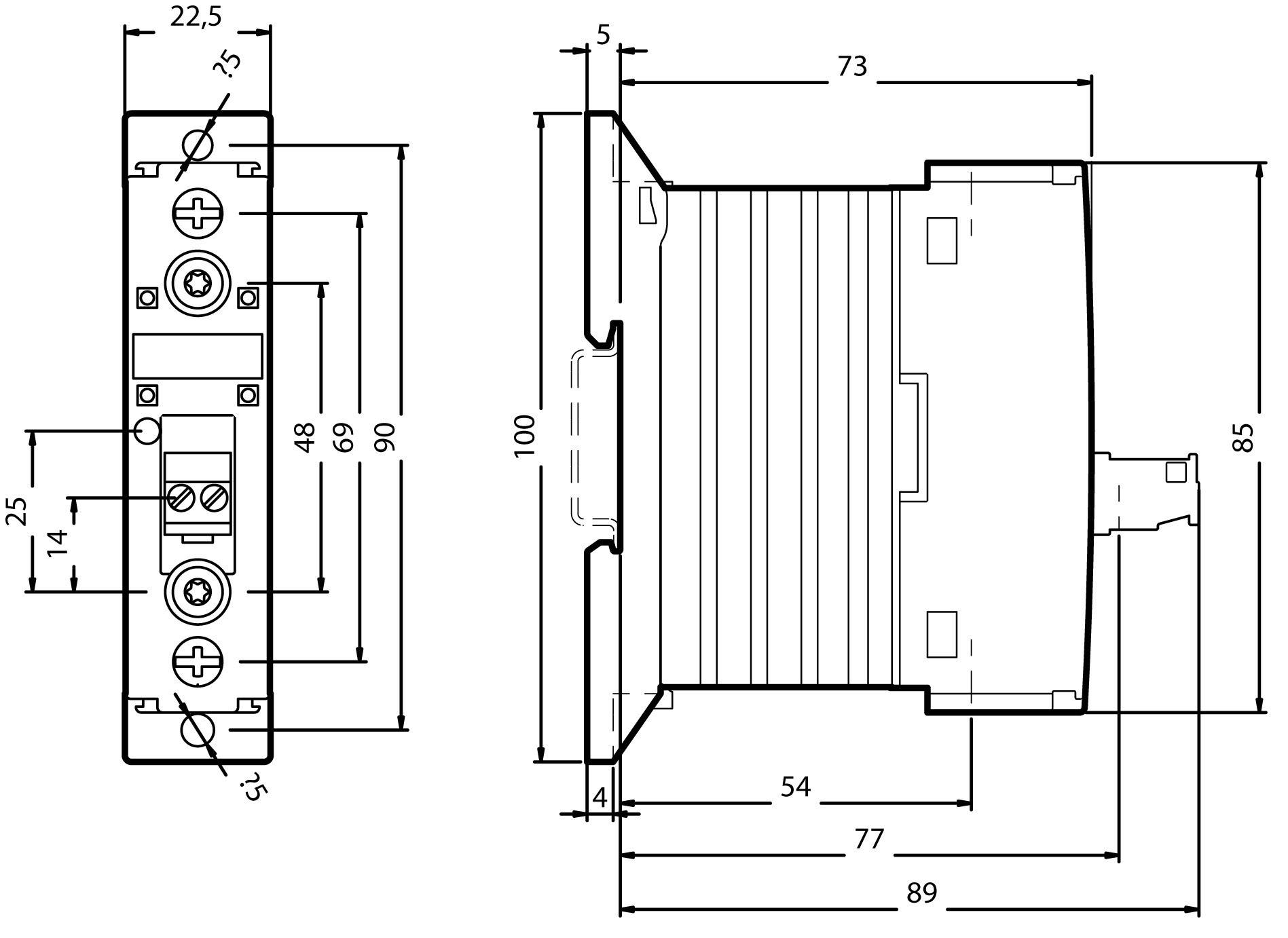

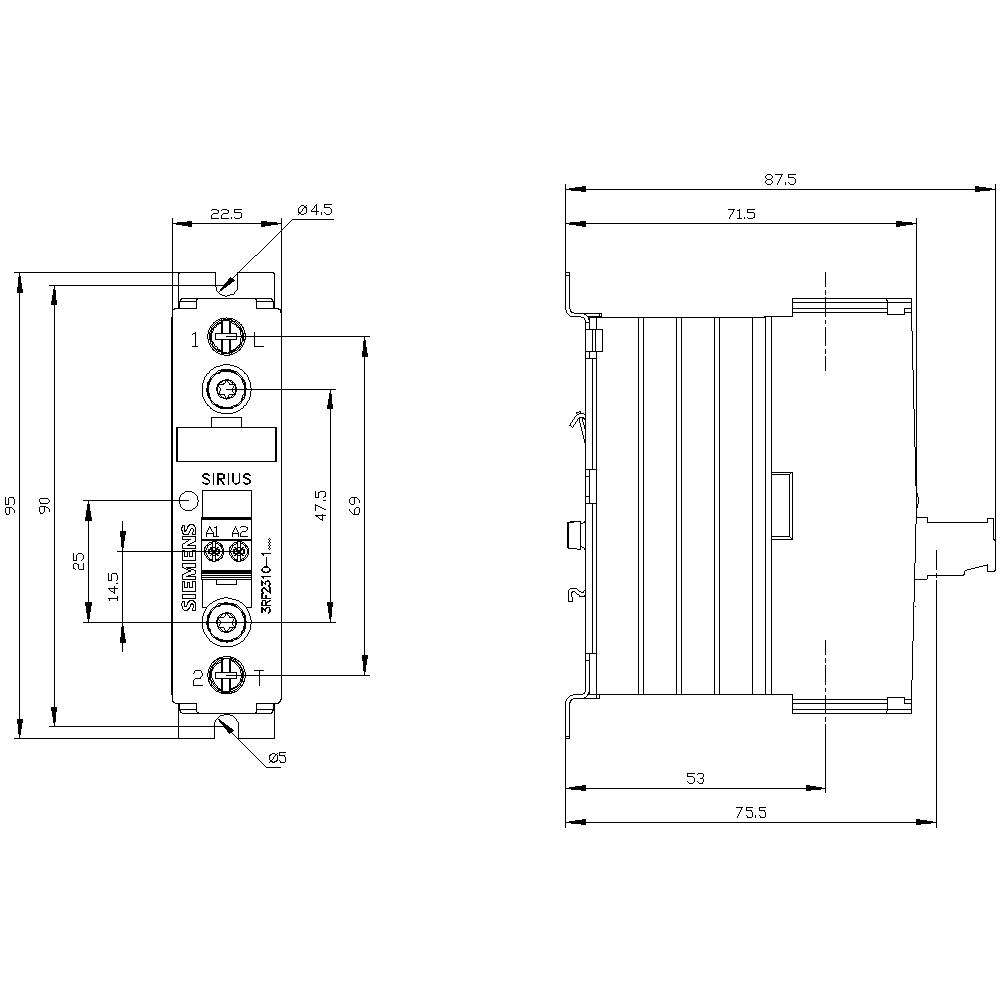

| Širina |
22.5 mm |
| Višina |
100 mm |
| Globina |
94 mm |
| Mere |
(Š x V x G) 22.5 x 100 x 94 mm |
| Vsebina |
1 kos |
| Skladnost z RoHS |
Ja |
| Number of phases |
1 |
| Suitable for distribution board |
TRUE |
| Rated control supply voltage DC |
15-24 V |
| Rated operation current Ie at AC-1 |
10.5 A |
| Voltage type for actuating |
DC |
| Rated operation current Ie at AC-51 |
10.5 A |
| UKCA |
da |
