Opis
Dobava vključuje

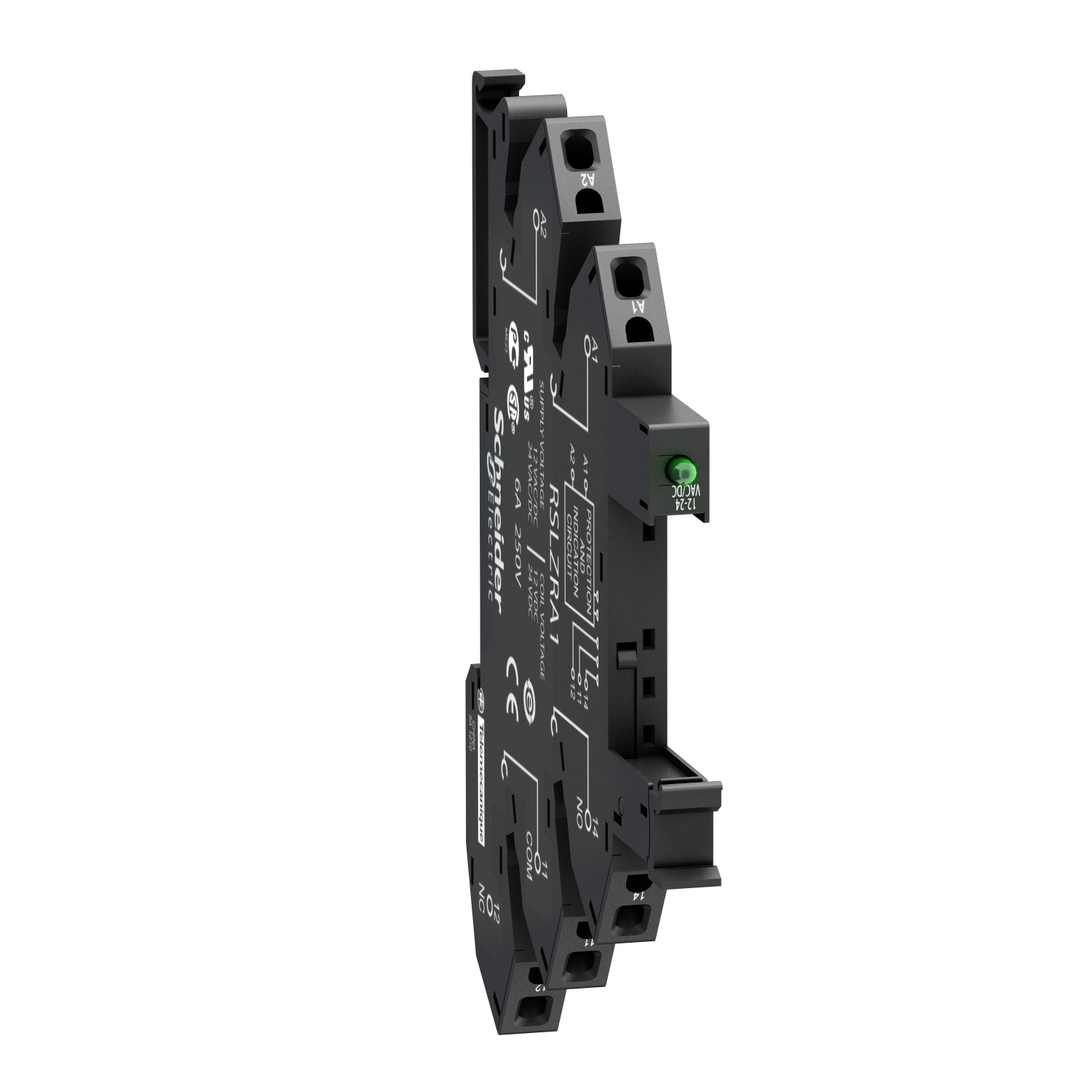

Vtični rele 1 kos 24 V/DC, 24 V/AC 6 A 1 preklopni Schneider Electric RSL1PRBU
Varnost izdelkov (GPSR)
Proizvajalčeva koda: RSL1PRBU
EAN koda: 3606480077906
Registrirana blagovna znamka: Schneider Electric
Ime proizvajalca: Schneider Electric GmbH
Naslov proizvajalca: Gothaer Str. 29
Poštna številka proizvajalca: 40880
Kraj proizvajalca: Ratingen
Država proizvajalca: Germany
Telefon proizvajalca: +4921173743000
Elektronski kontakt proizvajalca: https://www.se.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnični podatki
| Vrsta izdelka |
vtični rele |
|---|---|
| Vrsta |
RSL1PRBU |
| Priključek |
vzmetna sponka |
| Barva |
antracitna (matirana) |
| Kontakt |
1 menjalo |
| Material kontakta |
AgSnO2 |
| Nazivna napetost |
24 V/DC |
| Preklopna napetost (maks.) |
30 V/DC |
| Preklopni tok maks. |
6 A |
| Maks. preklopna moč |
2500 VA |
| Mehanska življenjska doba |
10000000 ciklov |
| Značilnosti |
z mostnim usmernikom |
| Vrsta zaščite |
IP40 |
| Maks. temperatura |
+70 °C |
| Min. temperatura |
-40 °C |
| Globina |
78.6 mm |
| Širina |
6.2 mm |
| Višina |
101 mm |
| Mere |
(Š x V x G) 6.2 x 101 x 78.6 mm |
| Vsebina |
1 kos |
| Teža |
29 g |
| Nominal current |
6 A |
| Width |
6.2 |
| Height |
78.6 mm |
| Depth |
101 mm |
| With detachable clamps |
TRUE |
| Drive, polarization |
Polarity free |
| Drive, switching attitude |
Mono stable |
| With forced-guided contacts |
TRUE |
| Type of switch contact |
Single contact |
| Complete with socket |
TRUE |
| Type of electric connection |
Spring clamp connection |
| Rated control supply voltage AC 50 Hz |
24-24 V |
| Rated control supply voltage AC 60 Hz |
24-24 V |
| Rated control supply voltage DC |
24-24 V |
| Material of contact surface |
Other |
| Degree of protection (IP) |
IP40 |
| With LED indication |
TRUE |
| Material contact |
Other |
| Voltage type for actuating |
DC |
| Number of contacts as normally closed contact |
0 |
| Number of contacts as normally open contact |
0 |
| Number of contacts as change-over contact |
1 |
| Material of contact insert |
Other |
| UKCA |
da |
