Opis
Power contactor, AC-3 16 A, 7.5 kW / 400 V 1 NC, 230 V AC, 50/60 Hz 3-pole, Size S00 screw terminals Power contactor SIRIUS 3RT2 for switching motors.
The 3RT2 contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. Many of the device combinations have been factory tested. The contactors offer the best connection to the automation level for every application (parallel, via ASi or IO-Link): Integrated auxiliary switches reduce the complexity of your design. The front-panel terminals simplify the wiring. The 3RT2 contactors are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready.
They are available in various sizes and in a wide performance range with AC and DC operation. In addition to screw terminals, all the devices are also available with spring-type terminals for fast, maintenance-free and vibration-proof connection.

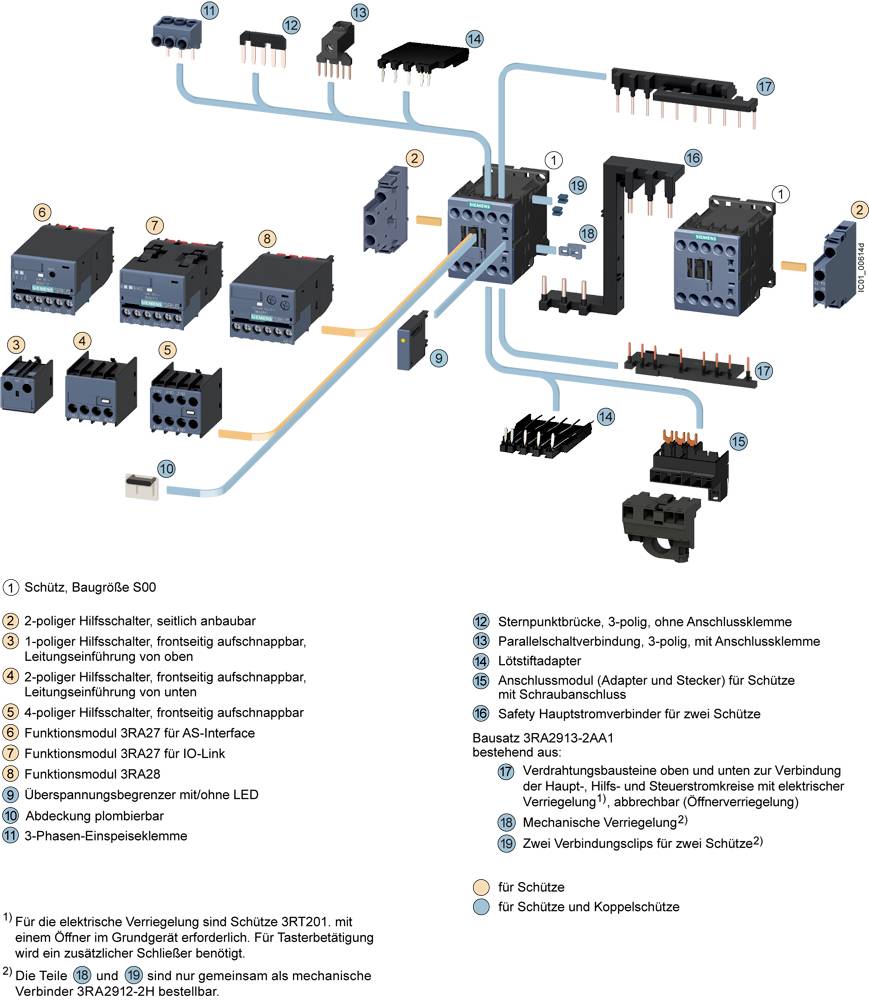

The comprehensive range of accessories, such as auxiliary switches, auxiliary releases etc. is standardized for all sizes. The available link modules, function modules and the SIRIUS 3RV29 infeed system considerably reduce the wiring expense.
The 3RT2 power contactors replace the well-proven 3RT1 series (up to 55 kW).
Simple, efficient and always up to date - SIRIUS modular system.
Dobava vključuje
Kontaktor 1 kos 3RT2018-1AP02 Siemens 3 zapiralni 7.5 kW 230 V/AC 16 A s pomožnim kontaktom
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 3RT20181AP02
EAN koda: 4011209785045
Registrirana blagovna znamka: Siemens
Ime proizvajalca: Siemens AG
Naslov proizvajalca: Siemenspromenade 2
Poštna številka proizvajalca: 91058
Kraj proizvajalca: Erlangen
Država proizvajalca: Germany
Telefon proizvajalca: +498938035491
Elektronski kontakt proizvajalca: https://www.siemens.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnični podatki
| Vrsta izdelka |
kontaktor |
|---|---|
| Vrsta |
3RT2018-1AP02 |
| Velikost |
S00 |
| Število polov |
3-polni |
| Kontakt |
3 zapiralo |
| Vrsta pomožnega kontakta |
1 odpiralo |
| Nazivna napetost |
230 V/AC |
| Preklopna napetost (maks.) |
400 V/AC |
| Bremenski tok |
16 A |
| Moč |
7.5 kW |
| Značilnosti |
s pomožnim kontaktom |
| Namestitev |
din-letev |
| Priključek |
vijačna sponka |
| Mehanska življenjska doba |
3.0E7 |
| Vrsta zaščite |
IP20 |
| Min. temperatura |
-25 °C |
| Maks. temperatura |
+60 °C |

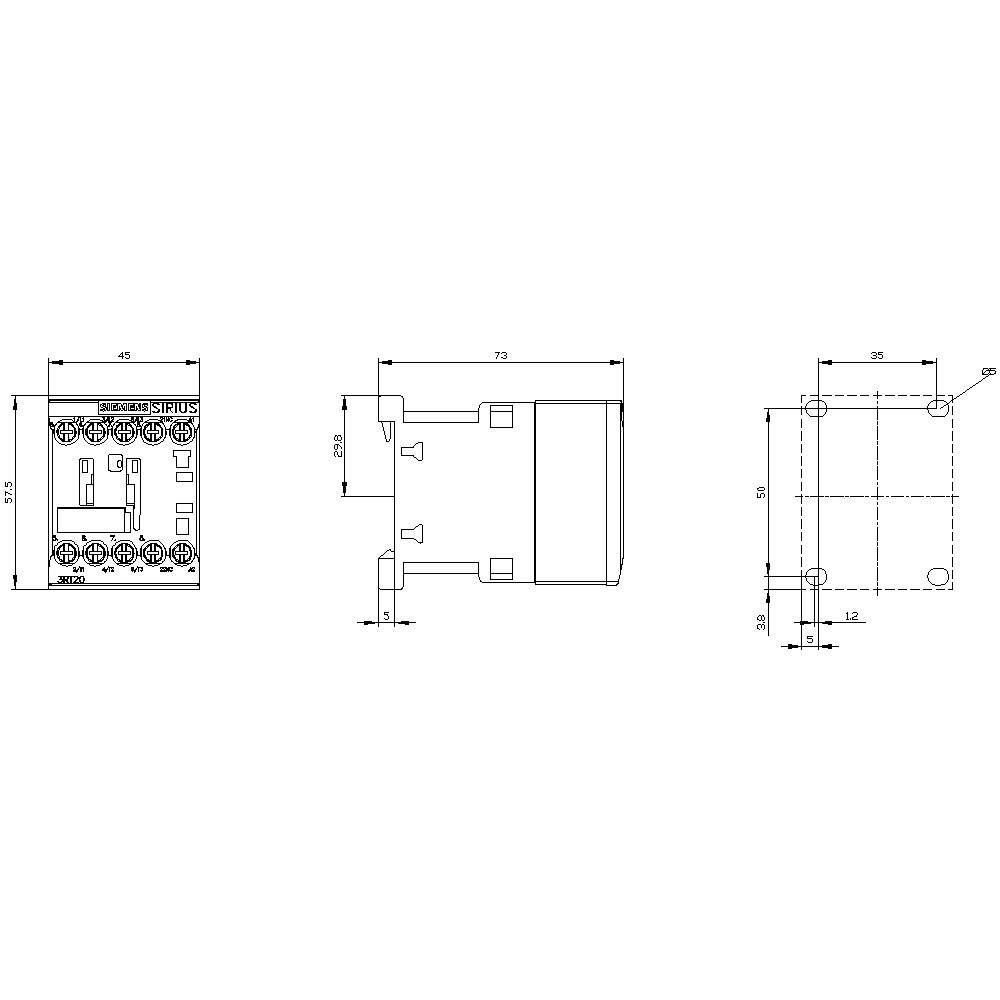

| Širina |
45 mm |
| Višina |
58 mm |
| Globina |
73 mm |
| Mere |
(Š x V x G) 45 x 58 x 73 mm |
| Vsebina |
1 kos |
| Skladnost z RoHS |
Ja |
| Teža |
0.24 |
| Suitable for distribution board |
TRUE |
| Rated operation power at AC-3, 400 V |
7.5 kW |
| Number of normally open contacts as main contact |
3 |
| Number of auxiliary contacts as normally closed contact |
1 |
| Rated operation current Ie at AC-3, 400 V |
16 A |
| Rated operation current Ie at AC-1, 400 V |
22 A |
| Rated control supply voltage AC 50 Hz |
230-230 V |
| Rated control supply voltage AC 60 Hz |
230-230 V |
| Type of electrical connection of main circuit |
Screw connection |
| Voltage type for actuating |
AC |
| Rated operation current Ie at AC-4, 400 V |
11.5 A |
| Rated operation power NEMA |
7.355 |
| UKCA |
da |
