Opis
Selector switch, illuminable, 22 mm, round, plastic, white, selector switch, short, 3 switch positions I-O-II, latching, actuating angle 2x45°, 10:30h/12h/13:30h Selector switches SIRIUS ACT for switching and controlling electrical loads.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.

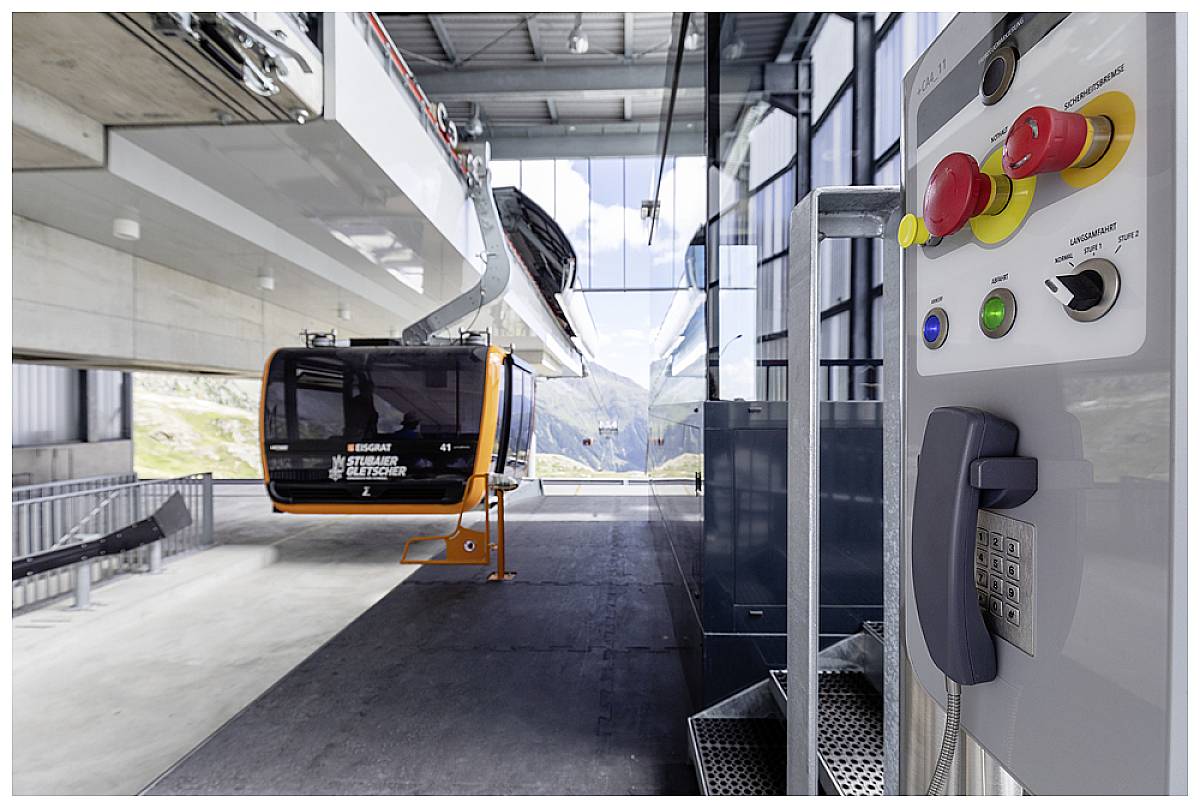

Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, 2-4 switching positions, short/long selector or rotary knob, illuminated/non-illuminated (lighting can also be retrofitted), latching/momentary contact operation.
Note: Single device, please order holders and modules separately.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 3SU10022BL600AA0
EAN koda: 4011209955370
Registrirana blagovna znamka: Siemens
Ime proizvajalca: Siemens AG
Naslov proizvajalca: Siemenspromenade 2
Poštna številka proizvajalca: 91058
Kraj proizvajalca: Erlangen
Država proizvajalca: Germany
Telefon proizvajalca: +498938035491
Elektronski kontakt proizvajalca: https://www.siemens.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnični podatki
| Vrsta izdelka |
preklopno stikalo |
|---|---|
| Značilnosti stikal/tipk |
prednji obroč iz umetne mase |
| Vrsta osvetlitve |
simbol puščice |
| Aktivacija - vrsta |
zatič |
| Barva svetlobe |
bela |
| Barva |
črna |
| Barva ohišja |
črna |
| Motiv za tisk |
oznaka s puščico |
| Priključek |
zunanji kontaktni element |
| Oblika |
Okrogla |
| Funkcije |
zaskočno |
| Mehanska življenjska doba |
1000000 |
| Vgradnja - premer |
22 mm |
| Vrsta zaščite |
IP66 |
| Min. temperatura |
-25 °C |
| Maks. temperatura |
+70 °C |
| Preklopni kot |
2 x 45 ° |
| Preklopni položaji |
1 x vklop/izklop/vklop |
| Širina |
32.3 mm |
| Višina |
32.3 mm |
| Premer |
22 mm |
| Vsebina |
1 kos |

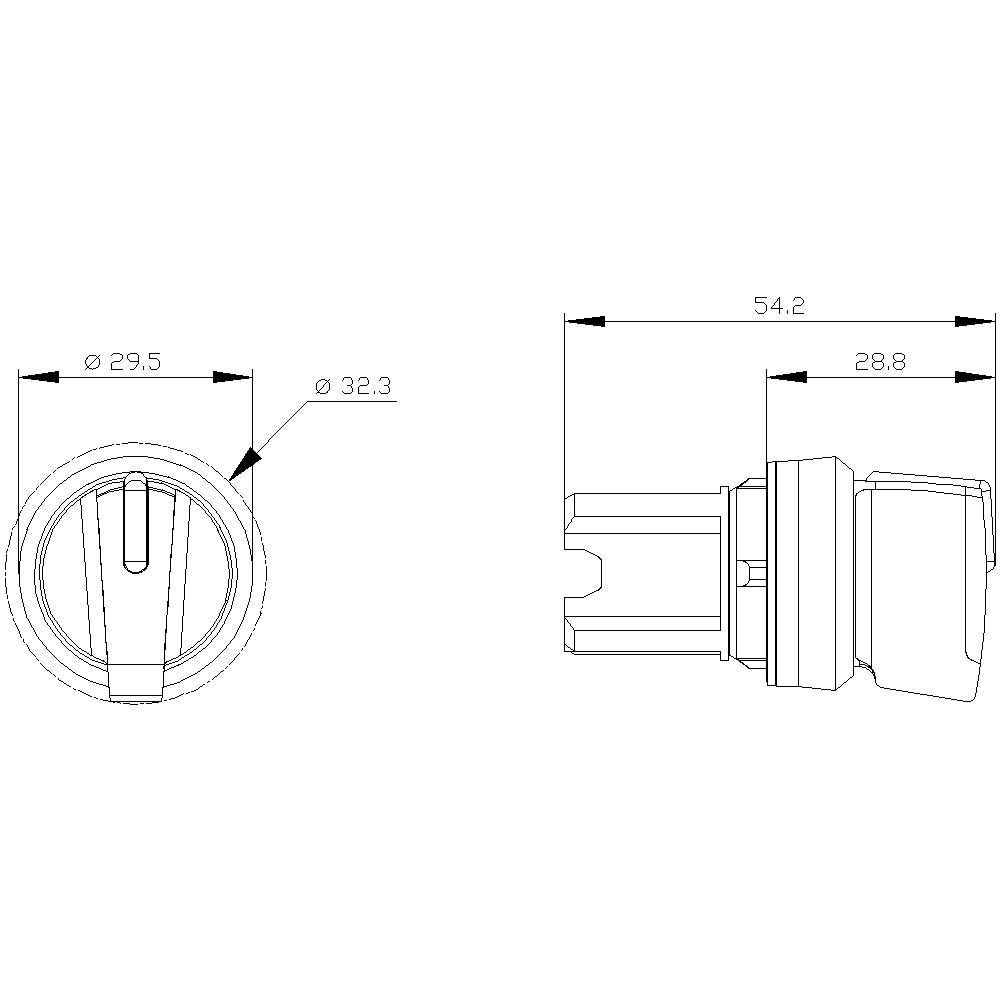

| Mere |
(Ø x V) 22 mm x 32.3 mm |
| Skladnost z RoHS |
Ja |
| Vrsta |
3SU1002-2BL60-0AA0 |
| Hole diameter |
22.3 mm |
| Number of switch positions |
3 |
| Suitable for lighting |
TRUE |
| Spring-return |
FALSE |
| Colour front ring |
Black |
| Degree of protection (IP), front side |
IP67/IP69K |
| Width opening |
32.3 mm |
| Height opening |
28.8 mm |
| Material front ring |
Plastic |
| With front ring |
TRUE |
| Construction type lens |
Rectangular |
| Type of control element |
Wing knob |
| Colour indicator light cap |
White |
| Colour control element |
White |
| Switching function latching |
TRUE |
| UKCA |
da |
