Opis
Illuminated pushbutton, 22 mm, round, plastic, clear, pushbutton, flat momentary contact type Illuminated pushbuttons SIRIUS ACT for switching and controlling electrical loads.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.

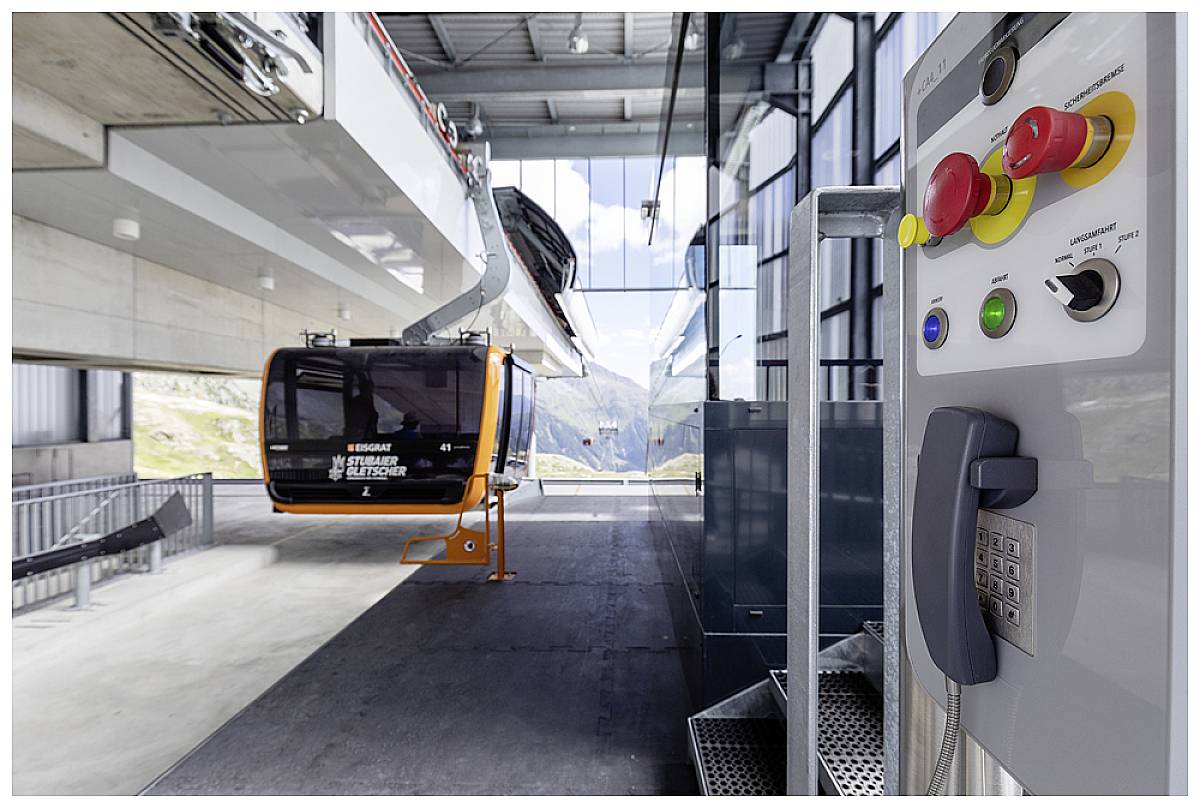

Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, illuminated/non-illuminated, with/without inscription, latching/momentary contact operation, various button and front ring heights.
Note: Single device, please order holders and modules separately.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 3SU10010AB700AA0
EAN koda: 4011209955745
Registrirana blagovna znamka: Siemens
Ime proizvajalca: Siemens AG
Naslov proizvajalca: Siemenspromenade 2
Poštna številka proizvajalca: 91058
Kraj proizvajalca: Erlangen
Država proizvajalca: Germany
Telefon proizvajalca: +498938035491
Elektronski kontakt proizvajalca: https://www.siemens.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnični podatki
| Vrsta embalaže |
Piece |
|---|---|
| Vrsta izdelka |
osvetljeno pritisno tipkalo |
| Značilnosti stikal/tipk |
ravno sprožilo |
| Vrsta osvetlitve |
površinska razsvetljava |
| Aktivacija - vrsta |
plastični odmikač |
| Barva svetlobe |
čista |
| Barva |
čista |
| Barva ohišja |
čista |
| Motiv za tisk |
brez |
| Priključek |
zunanji kontaktni element |
| Oblika |
Okrogla |
| Funkcije |
tipkalno |
| Mehanska življenjska doba |
3000000 |
| Vgradnja - premer |
22 mm |
| Vrsta zaščite |
IP66 |
| Min. temperatura |
-25 °C |
| Maks. temperatura |
+70 °C |
| Širina |
29.5 mm |
| Višina |
29.5 mm |
| Vsebina |
1 kos |

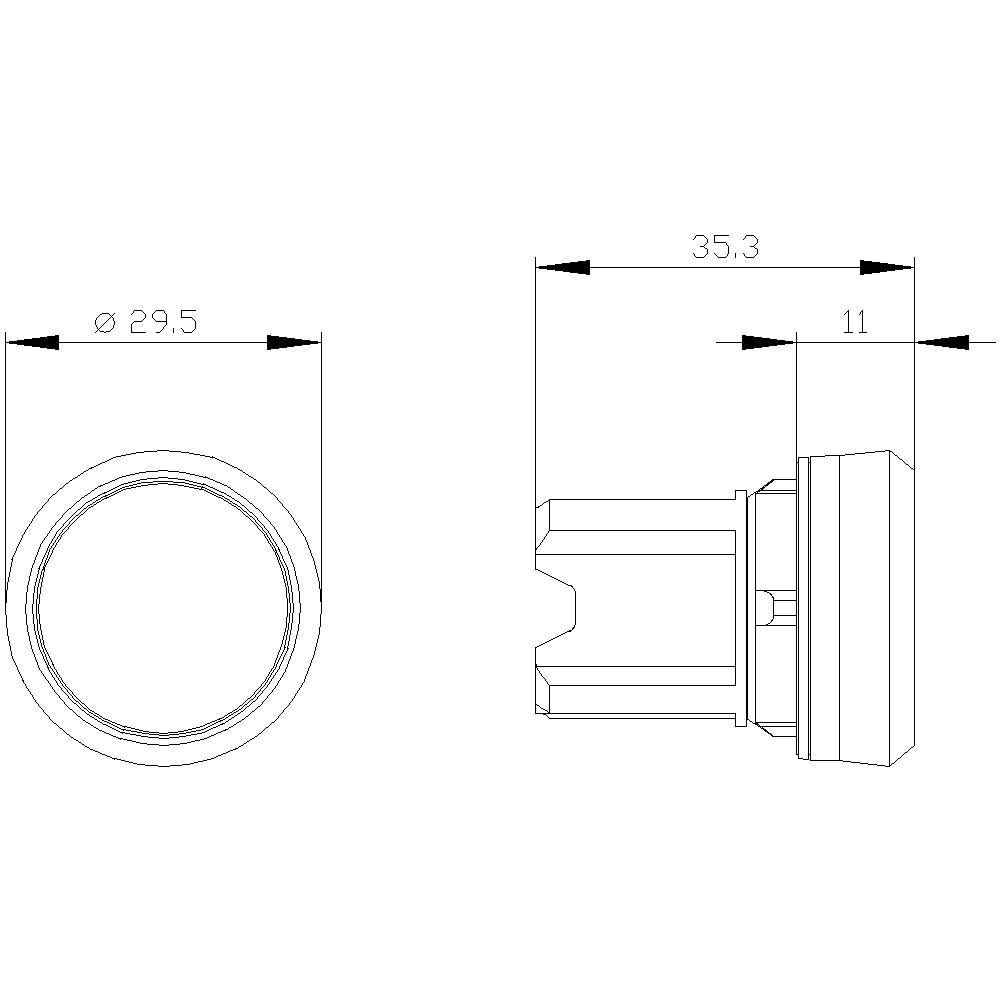

| Mere |
(Š x V) 29.5 mm x 29.5 mm |
| Skladnost z RoHS |
Ja |
| Teža |
18 g |
| Vrsta |
3SU1001-0AB70-0AA0 |
| Hole diameter |
22.3 mm |
| Suitable for lighting |
TRUE |
| Number of command positions |
1 |
| Spring-return |
FALSE |
| Labelled |
FALSE |
| Colour front ring |
Black |
| Degree of protection (IP), front side |
Other |
| With protective cover |
FALSE |
| Material front ring |
Plastic |
| With front ring |
TRUE |
| Construction type lens |
Round |
| Switching function latching |
FALSE |
| Degree of protection (NEMA), front side |
Other |
| UKCA |
da |
