Opis
Enclosure for command devices, 22 mm, round, Enclosure material metal, enclosure top part gray, 6 control points, without equipment, Recess for labels, floor mounting, 1xM25 each on top and bottom Enclosures SIRIUS ACT for mounting the 22.5 mm pushbuttons and indicator lights for separately allocated control units and cabinets.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.

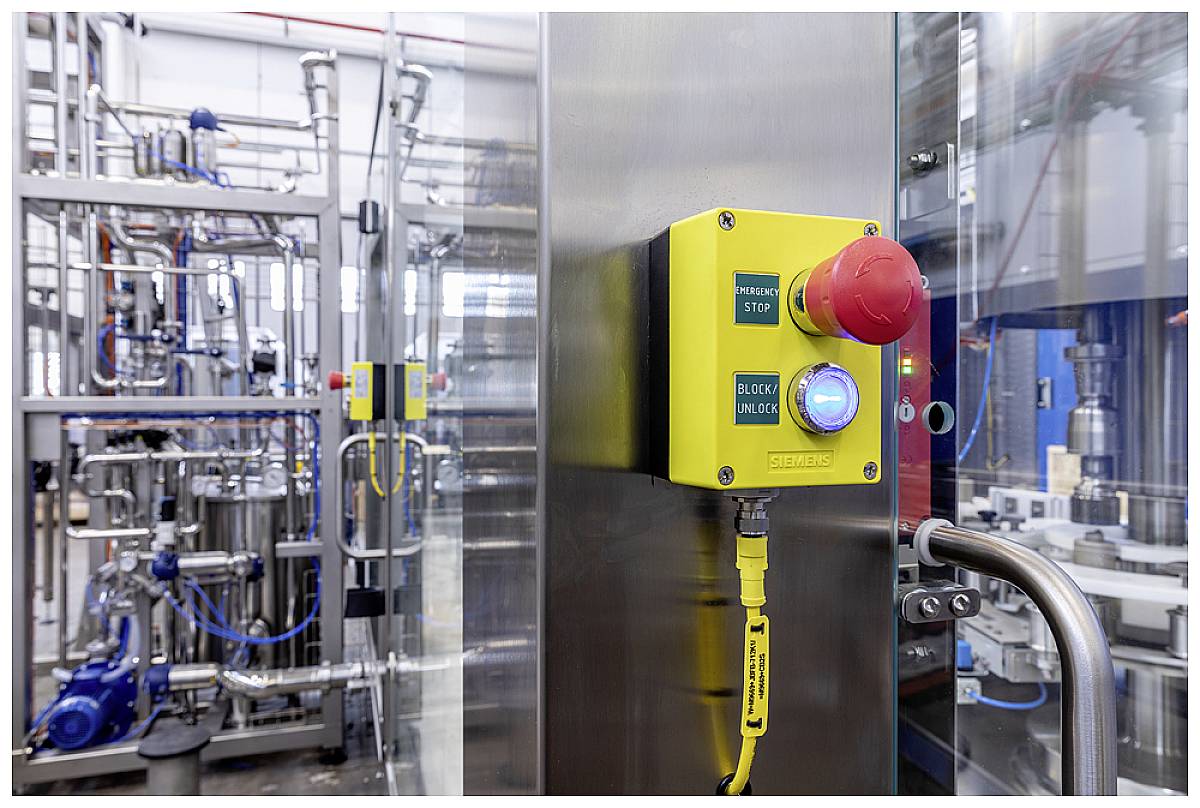

Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Yellow/gray, plastic/metal, 1-6 command points, empty enclosure/pre-equipped, optionally with AS-Interface connection.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Namigi
Z vdolbino za ploščice z imeni.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 3SU18560AA000AB1
EAN koda: 4011209970298
Registrirana blagovna znamka: Siemens
Ime proizvajalca: Siemens AG
Naslov proizvajalca: Siemenspromenade 2
Poštna številka proizvajalca: 91058
Kraj proizvajalca: Erlangen
Država proizvajalca: Germany
Telefon proizvajalca: +498938035491
Elektronski kontakt proizvajalca: https://www.siemens.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnični podatki
| Značilnosti stikal/tipk |
6 mest za vgradnjo |
|---|---|
| Material |
kovina |
| Barva |
siva |
| Vgradnja - premer |
22 mm |
| Dolžina |
285 mm |
| Širina |
85 mm |
| Višina |
64 mm |

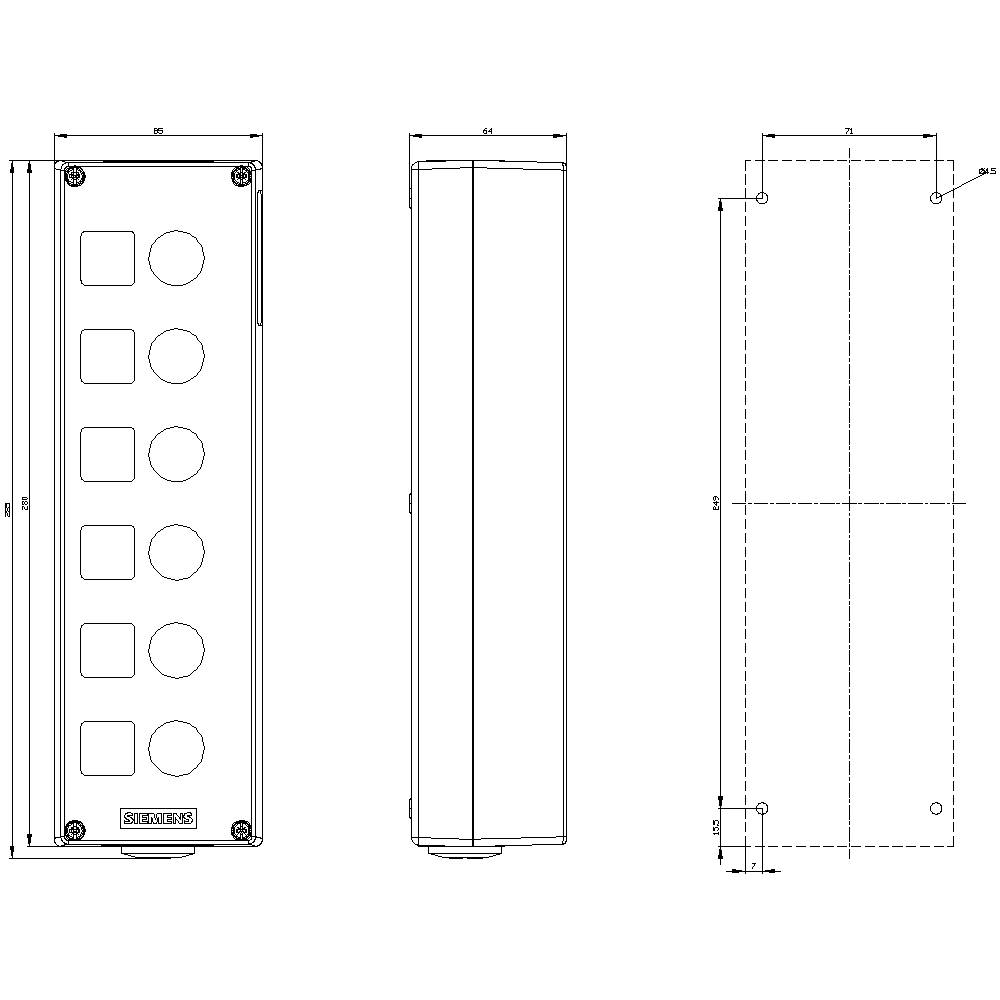

| Mere |
(D x Š x V) 285 x 85 x 64 mm |
| Vrsta zaščite |
IP67/IP69 |
| Vsebina |
1 kos |
| Vrsta |
3SU1856-0AA00-0AB1 |
| Skladnost z RoHS |
Ja |
| Globina |
64 mm |
| Teža |
1.0850 kg |
| Width |
85 |
| Height |
285 mm |
| Depth |
64 mm |
| Diameter openings |
22.3 mm |
| Number of command positions |
6 |
| Colour housing cover |
Grey |
| Housing material |
Other |
| Construction type housing |
Surface mounted housing |
| Degree of protection (IP) |
IP67/IP69K |
| Degree of protection (NEMA) |
Other |
| UKCA |
da |
