Opis
Indicator lights, 22 mm, round, plastic, yellow, lens, smooth Indicator lights SIRIUS ACT for signaling switching states or faults in systems with high luminosity, thanks to energy-efficient LED technology.Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in three modern design lines of rugged genuine metal and high-grade plastic.An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.Versions available: Several colors, different voltage variants.Note: Single device, please order holders and modules separately.SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 3SU10016AA300AA0
EAN koda: 4011209946279
Registrirana blagovna znamka: Siemens
Ime proizvajalca: Siemens AG
Naslov proizvajalca: Siemenspromenade 2
Poštna številka proizvajalca: 91058
Kraj proizvajalca: Erlangen
Država proizvajalca: Germany
Telefon proizvajalca: +498938035491
Elektronski kontakt proizvajalca: https://www.siemens.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnični podatki 1379397 Siemens 3SU1001-6AA30-0AA0 indikator luči ploščato rumena 1 kos
Informacije 1379397 Siemens 3SU1001-6AA30-0AA0 indikator luči ploščato rumena 1 kos
Informacije 1379397 Siemens 3SU1001-6AA30-0AA0 indikator luči ploščato rumena 1 kos
Tehnični podatki
| Vrsta izdelka |
indikator luči |
|---|---|
| Izvedba |
Prožilni / signalni element |
| Barva |
rumena |
| Vgradnja - premer |
22 mm |
| Razred energetske učinkovitosti |
n.rel. (EENRPS00) |
| Mere |
(Ø x V) 29.45 mm x 29.5 mm |
| Priključek |

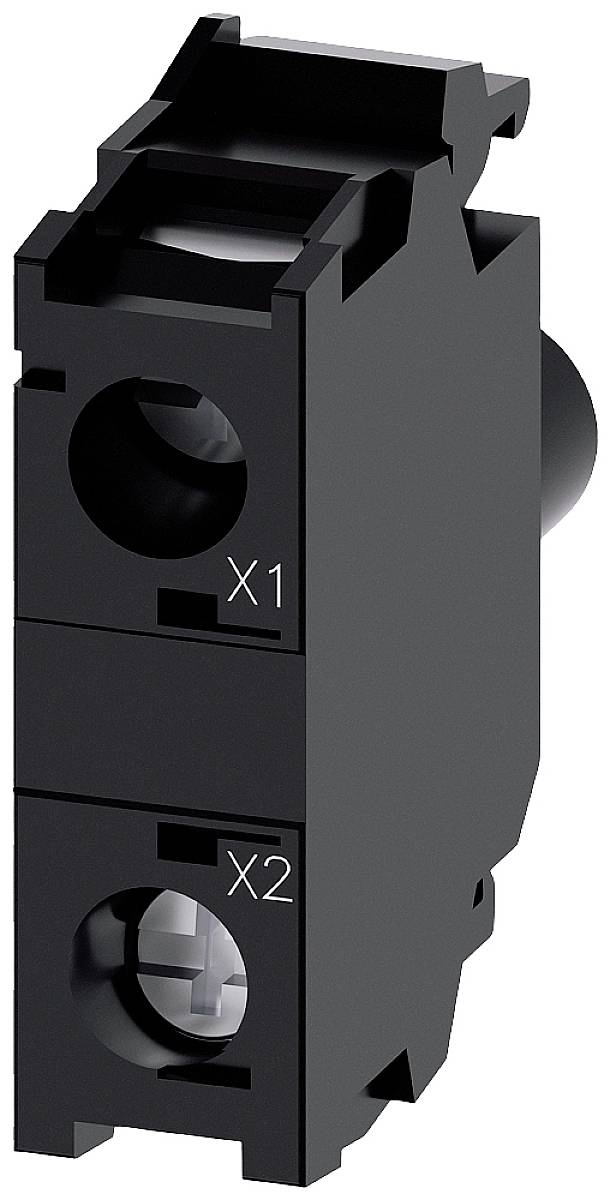

zunanji LED element |
| Teža |
12.00 |
| Vsebina |
1 kos |
| Širina |
29.5 mm |
| Višina |
29.5 mm |
| Premer |
29.45 mm |
| Skladnost z RoHS |
Ja |
| Značilnosti stikal/tipk |
ploščato |
| Vrsta zaščite |
IP66 |
| Maks. temperatura |
+70 °C |
| Min. temperatura |
-25 °C |
| Vrsta |
3SU1001-6AA30-0AA0 |
| Hole diameter |
22.3 mm |
| Colour lens |
Other |
| Colour front ring |
Other |
| Degree of protection (IP), front side |
IP67/IP69K |
| Width opening |
29.5 mm |
| Height opening |
11.8 mm |
| Material front ring |
Other |
| With front ring |
FALSE |
| Construction type lens |
Round |
| Suitable for number of built-in signal lights |
1 |
| Type of lens |
High |
| UKCA |
da |
